Redpanda Connect Quickstart

In this quickstart, you build data pipelines to generate, transform, and handle streaming data end-to-end. You create two pipelines: one that generates dad jokes and writes them to a topic in your cluster, and another that reads those jokes and gives each one a random "cringe rating".

After completing this quickstart, you will be able to:

  • Build a producer pipeline that generates and publishes data to a topic

  • Build a consumer pipeline that reads, transforms, and logs data from a topic

Prerequisites

You must have a Redpanda Cloud account with a Serverless, Dedicated, or standard BYOC cluster. If you don’t already have an account, sign up for a free trial.

Clusters can create up to 100 pipelines. For additional pipelines, contact Redpanda support.

Quickstart pipelines

This quickstart creates the following pipelines:

  • The first pipeline produces dad jokes and writes them to a topic in your cluster.

  • The second pipeline consumes those dad jokes and gives each one a random "cringe rating" from 1-10.

The producer pipeline uses the following Redpanda Connect components:

Component type Component Purpose

Input

generate

Creates jokes

Output

redpanda

Writes messages to your topic

Processor

log

Logs generated messages

Processor

catch

Catches errors

The consumer pipeline uses the following Redpanda Connect components:

Component type Component Purpose

Input

redpanda

Reads messages from your topic

Output

drop

Drops the processed messages

Processor

bloblang

Processes ratings

Processor

log

Logs processed messages

Processor

catch

Catches errors
The pipeline editor provides an IDE-like experience for creating pipelines. After a component has been added, you can click the leaf icon in the left sidebar to open its documentation.

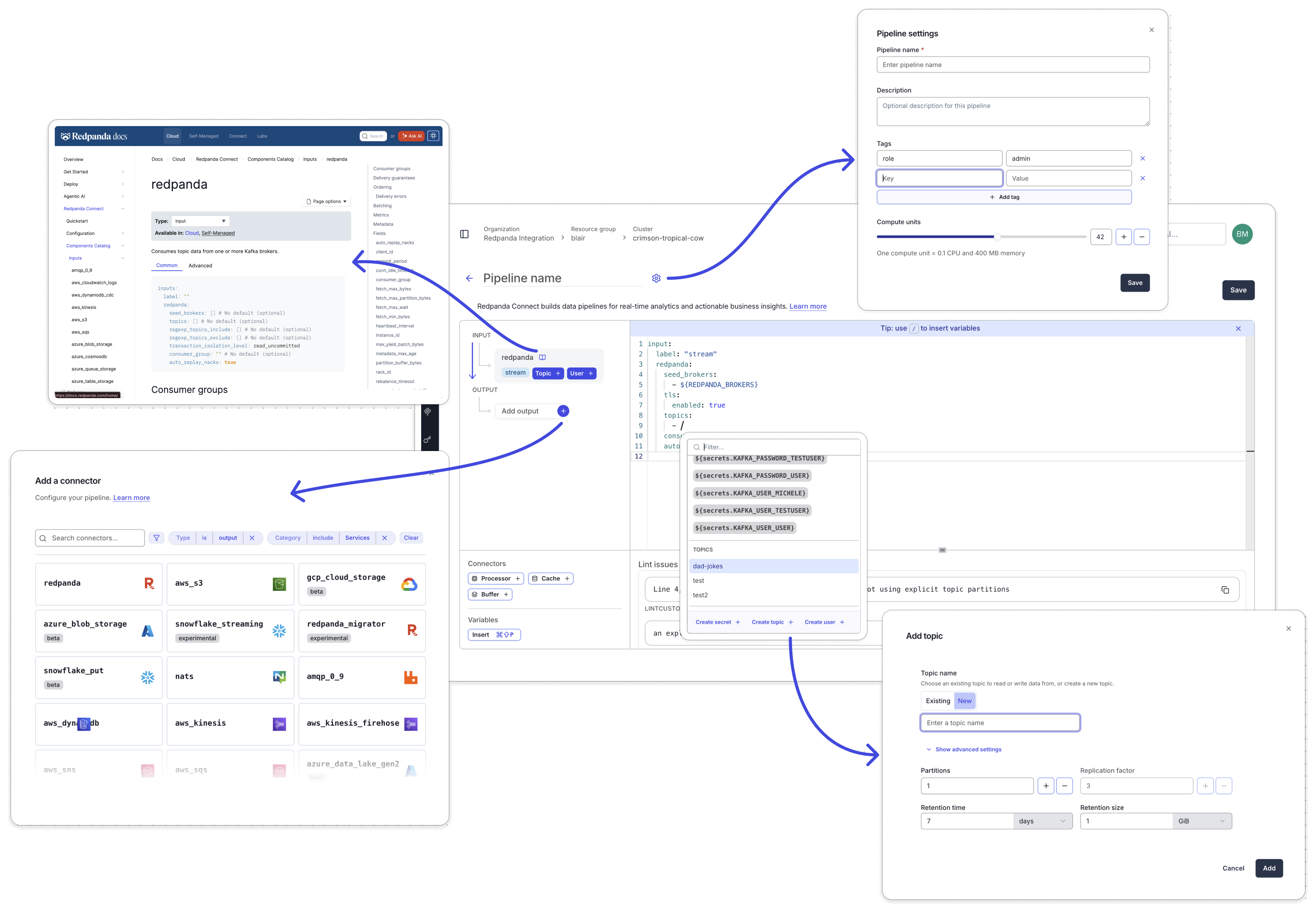

Redpanda Connect user interface

Build a producer pipeline

Every pipeline requires an input and an output in a configuration file. You can select components in the left sidebar and customize the YAML in the editor.

To create the producer pipeline:

  1. Go to the Connect page for your cluster and click Create a pipeline.

  2. Enter this name for the pipeline: joke-generator-producer.

  3. In the left sidebar, click Add input + and search for and select the generate input connector. The YAML for this connector appears in the editor.

  4. Click Add output + and search for and select the redpanda output connector. The YAML for this connector also appears in the editor.

  5. The redpanda connector requires a Redpanda topic and user:

    1. In the redpanda output connector, click Topic + to create a new topic. Toggle to New and enter dad-jokes for the topic name. Click Add.

    2. In the redpanda output connector, click User + to create a new user. Toggle to New and enter connect for the username. Click Add.

  6. Replace the generated YAML in the editor with the following. This configuration includes the log and catch processors and the mapping for joke generation. Bloblang is Redpanda Connect’s scripting language used to add logic.

    input:
  generate:
    interval: 5s
    count: 0
    mapping: |
      let jokes = [
        "Why don't scientists trust atoms? Because they make up everything!",
        "I'm reading a book about anti-gravity. It's impossible to put down!",
        "Why did the scarecrow win an award? He was outstanding in his field!",
        "What do you call a fake noodle? An impasta!",
        "Why don't eggs tell jokes? They'd crack each other up!",
        "I used to play piano by ear, but now I use my hands.",
        "What do you call a bear with no teeth? A gummy bear!",
        "Why did the bicycle fall over? It was two tired!",
        "What do you call a fish wearing a crown? A king fish!",
        "Why don't skeletons fight each other? They don't have the guts!",
        "What do you call cheese that isn't yours? Nacho cheese!",
        "Why can't you hear a pterodactyl using the bathroom? Because the 'p' is silent!",
        "What did the ocean say to the beach? Nothing, it just waved!",
        "Why did the math book look sad? It had too many problems!",
        "What do you call a sleeping bull? A bulldozer!",
        "How do you organize a space party? You planet!",
        "What's orange and sounds like a parrot? A carrot!",
        "Why did the coffee file a police report? It got mugged!",
        "What do you call a can opener that doesn't work? A can't opener!",
        "Why don't oysters donate to charity? Because they're shellfish!"
      ]

      let joke_index = random_int() % $jokes.length()

      root.joke = $jokes.index($joke_index)
      root.id = uuid_v4()
      root.timestamp = now()
      root.source = "dad-joke-generator"
      root.joke_length = root.joke.length()


pipeline:
  processors:
    - log:
        level: INFO
        message: "📝 Generating joke: ${! json(\"joke\") }"

    - catch:
        - log:
            level: ERROR
            message: "❌ Error generating joke: ${! error() }"

output:
  redpanda:
    seed_brokers: # Optional
      - ${REDPANDA_BROKERS}
    tls:
      enabled: true # Optional (default: false)
      client_certs: []
    sasl:
      - mechanism: SCRAM-SHA-256
        username: ${secrets.KAFKA_USER_CONNECT}
        password: ${secrets.KAFKA_PASSWORD_CONNECT}
    topic: dad-jokes # Optional

    • Notice the ${REDPANDA_BROKERS} contextual variable in the configuration. This references your cluster’s bootstrap server address, so you can use it in any pipeline without hardcoding connection details. Use the slash command menu in the YAML editor or use the command palette to insert the Redpanda broker’s contextual variable.

    • Notice ${secrets.KAFKA_USER_CONNECT} and ${secrets.KAFKA_PASSWORD_CONNECT}. These reference secrets that you can create using the slash command menu in the YAML editor or on the Security page.

    • The Brave browser does not fully support code snippets.

  7. Click Save.

    Your pipeline details display, and after a few seconds, the pipeline starts running. The pipeline generates jokes and writes the jokes to your Redpanda topic.

Review the pipeline logs

The page loads new log messages as they come in. When Live mode is disabled, you can filter logs, for example, by level, message content, or path. The log shows activity from the past five hours.

Click through the log messages to see the startup sequence. For example, you’ll see when the output becomes active:

{
  "instance_id": "d73c39bp7l8c73d7lll0",
  "label": "",
  "level": "INFO",
  "message": "Output type redpanda is now active",
  "path": "root.output",
  "pipeline_id": "d73a55ptub9s73agpthg",
  "time": "2026-03-27T17:43:02.36416142Z"
}

View the processed messages

  1. Go to the Topics page for your cluster and select the dad-jokes topic.

  2. Click any message to see the structure. For example:

    {
    "id": "d242c355-4cee-4382-817a-190c7a115a19",
    "joke": "I used to play piano by ear, but now I use my hands.",
    "joke_length": 52,
    "source": "dad-joke-generator",
    "timestamp": "2026-03-27T15:30:38.963227997Z"
}

Build a consumer pipeline

This next pipeline rates the jokes that you generated in the first pipeline. To create the consumer pipeline:

  1. Go back to the Connect page for your cluster, and click Create a pipeline.

  2. Enter this name for the pipeline: joke-generator-consumer.

  3. In the left sidebar, click Add input +, and search for and select the redpanda input connector.

  4. The redpanda connector requires a Redpanda topic and user:

    1. In the redpanda input connector, click Topic + and select the existing topic dad-jokes. Click Add.

    2. In the redpanda input connector, click User + and select the existing user connect. For consumer group, enter dad-joke-raters. This allows the user connect to be granted READ and DESCRIBE permissions for the dad-joke-raters consumer group. Click Add.

  5. Click Add output +, and search for and select the drop output connector. (For testing purposes, this output drops messages instead of forwarding them. In a real scenario you would replace the drop connector with your real destination.)

  6. Replace the generated YAML in the editor with the following configuration, which includes the bloblang, log, and catch processors.

    This example explicitly includes several optional configuration fields for the redpanda input. They’re shown here for demonstration purposes, so you can see a range of available settings.
    input:
  redpanda:
    seed_brokers: # Optional
      - ${REDPANDA_BROKERS}
    client_id: benthos # Optional (default: "benthos")
    tls:
      enabled: true # Optional (default: false)
      client_certs: []
    sasl:
      - mechanism: SCRAM-SHA-256
        username: ${secrets.KAFKA_USER_CONNECT}
        password: ${secrets.KAFKA_PASSWORD_CONNECT}
    metadata_max_age: 5m # Optional (default: "5m")
    request_timeout_overhead: 10s # Optional (default: "10s")
    conn_idle_timeout: 20s # Optional (default: "20s")
    topics: # Required (mutually exclusive with regexp_topics)
      - dad-jokes
    regexp_topics: false # Optional (default: false). Mutually exclusive with topics.
    rebalance_timeout: 45s # Optional (default: "45s")
    session_timeout: 1m # Optional (default: "1m")
    heartbeat_interval: 3s # Optional (default: "3s")
    start_from_oldest: true # Optional (default: true)
    start_offset: earliest # Optional (default: "earliest")
    fetch_max_bytes: 50MiB # Optional (default: "50MiB")
    fetch_max_wait: 5s # Optional (default: "5s")
    fetch_min_bytes: 1B # Optional (default: "1B")
    fetch_max_partition_bytes: 1MiB # Optional (default: "1MiB")
    transaction_isolation_level: read_uncommitted # Optional (default: "read_uncommitted")
    consumer_group: dad-joke-raters # Optional
    commit_period: 5s # Optional (default: "5s")
    partition_buffer_bytes: 1MB # Optional (default: "1MB")
    topic_lag_refresh_period: 5s # Optional (default: "5s")
    max_yield_batch_bytes: 32KB # Optional (default: "32KB")
    auto_replay_nacks: true # Optional (default: true)


pipeline:
  processors:
    - bloblang: |
        root = this

        let rating = random_int(min: 1, max: 11)
        root.cringe_rating = $rating

        root.cringe_level = if $rating <= 3 {
          "Mild - Almost acceptable"
        } else if $rating <= 6 {
          "Medium - Classic dad joke territory"
        } else if $rating <= 8 {
          "High - Eye-roll inducing"
        } else {
          "EXTREME - Peak dad joke achievement"
        }

        root.processed_at = now()

        root.rating_emoji = match {
          $rating <= 3 => "😐",
          $rating <= 6 => "😬",
          $rating <= 8 => "🤦",
          _ => "💀"
        }

        let age_seconds = (timestamp_unix() - this.timestamp.ts_parse("2006-01-02T15:04:05Z07:00").ts_unix())
        root.age_seconds = $age_seconds

    - log:
        level: INFO
        message: |
          🎭 JOKE RATED! ${! json("rating_emoji") }
          Joke: "${! json("joke") }"
          Cringe Rating: ${! json("cringe_rating") }/10 - ${! json("cringe_level") }
          Age: ${! json("age_seconds") } seconds old
          Processed at: ${! json("processed_at") }

    - catch:
        - log:
            level: ERROR
            message: "❌ Failed to process joke: ${! error() }"


output:
  drop: {}

  7. Click Save to start your pipeline.

  8. Your pipeline details display, and after a few seconds, the pipeline starts running. Check the logs to see a rated joke. For example:

    {
    "custom_source": "true",
    "instance_id": "d454dkn4u2is73ava480",
    "label": "",
    "level": "INFO",
    "message": "🎭 JOKE RATED! 💀\nJoke: \"I used to play piano by ear, but now I use my hands.\"\nCringe Rating: 9/10 - EXTREME - Peak dad joke achievement\nAge: 659 seconds old\nProcessed at: 2026-03-27T17:54:13.340229297Z\n",
    "path": "root.pipeline.processors.1",
    "pipeline_id": "d454djahlips73dmcll0",
    "time": "2026-03-27T17:54:13.341137527Z"
}

Clean up

When you’ve finished experimenting with your data pipeline, you can delete the pipelines and the topic you created for this quickstart.

  1. On the Connect page, click the …​ icon next to the joke-generator-producer pipeline and select Delete. Repeat for the joke-generator-consumer pipeline.

  2. Confirm your deletion to remove the pipelines and associated logs.

  3. On the Topics page, delete the dad-jokes topic.
